Description
25-Piece Contractor Pack
Create clean, customizable network and audiovisual connection points with this 25-pack of white 4-port keystone wall plates.
Each standard single-gang faceplate accepts up to four compatible snap-in keystone modules, allowing network, telephone, audio, video and coaxial connections to be arranged at one convenient wall location.
25-Piece Pack for Professional Installations
The C-6733 bulk package is a practical choice for network installers, AV contractors, builders, renovators and facility-maintenance teams completing projects with several low-voltage cable outlets.
One package contains 25 single-gang wall plates. With four openings on each plate, the package provides capacity for up to 100 keystone connections.
- 25 white single-gang wall plates
- Four configurable ports per plate
- Up to 100 connection positions per package
- Suitable for residential and commercial projects
- Matching wall-plate mounting screws included
Four Connections in One Single-Gang Wall Plate
The four-port format provides increased connection capacity without requiring a larger two-gang wall opening. Install four matching modules or combine different compatible connection types according to the requirements of each room or workstation.
Individual modules can be changed later without replacing the complete faceplate, making the outlet easier to update when equipment, cabling or room requirements change.
Key Features
- Four openings for compatible snap-in keystone modules
- Standard North American single-gang wall plate format
- Supports custom combinations of low-voltage connections
- Suitable for network, telephone, audio and video applications
- Low-profile flush-mounted appearance
- White finish coordinates with common room interiors
- Fits compatible wall boxes and low-voltage brackets
- Unused openings can be covered with compatible blank inserts
Compatible Network and AV Connections
Configure each wall plate with compatible standard-size keystone modules for connections such as:
- Cat5e, Cat6 and Cat6A RJ45 network connections
- RJ11 telephone connections
- HDMI audio and video connections
- F-type coaxial cable connections
- USB connections
- RCA and 3.5 mm audio connections
- Optical audio connections
- Speaker and banana-plug connections

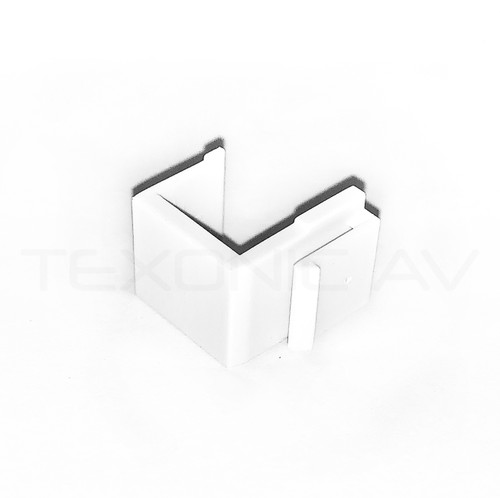

- Blank inserts for unused openings
Important Module-Fit Information
Standard modules: The plate is designed for compatible standard-size snap-in keystone inserts.
Four-port spacing: The connection positions are close together because four modules fit within one single-gang plate.
Wider HDMI, USB, audio or specialty couplers may interfere with adjacent ports. Confirm the width and depth of all selected modules before ordering or installing four modules side by side.
Recommended Applications
Office networks: Create organized Ethernet, telephone and display connections for desks, workstations and meeting rooms.
Home theatre systems: Route network, HDMI, coaxial and audio connections behind televisions, projectors and media equipment.
Schools and training rooms: Provide network and AV connections for computers, displays, projectors and presentation equipment.
Commercial projects: Suitable for retail stores, restaurants, clinics, offices, server rooms and hospitality spaces.
Renovations and upgrades: Replace unfinished cable openings with a clean modular connection point that can be reconfigured later.
Standard Single-Gang Installation
The wall plate mounts to a compatible standard North American single-gang electrical box, low-voltage mounting bracket or surface-mount box.
- Install a compatible single-gang box or low-voltage mounting bracket.
- Route the required low-voltage cables to the wall opening.
- Terminate or connect each cable to its compatible keystone module.
- Snap the selected modules securely into the wall plate openings.
- Cover unused positions with compatible blank keystone inserts.
- Attach the plate using the matching wall-plate mounting screws.
Installation notice: This wall plate is intended for compatible low-voltage voice, data, audio and video connections. Install cabling according to applicable building and electrical requirements.
Technical Specifications
| Model / SKU | C-6733 |
|---|---|
| Product Type | Modular keystone wall plate |
| Package Quantity | 25 wall plates |
| Ports Per Plate | 4 keystone openings |
| Total Port Capacity | Up to 100 keystone openings per package |
| Keystone Format | Compatible standard-size snap-in modules |
| Wall Plate Format | Single gang |
| Plate Height | Approximately 4.5 in. |
| Plate Width | Approximately 2.75 in. |
| Mounting Format | Compatible single-gang box, surface box or low-voltage bracket |
| Mounting Style | Flush mount |
| Colour | White |
| Application | Low-voltage network, telephone, data, audio and video connections |
| Keystone Modules | Selected separately according to the required connections |
What’s Included
- 25 × C-6733 white single-gang 4-port keystone wall plates
- Matching wall-plate mounting screws
Important Package Information
Package quantity: The listed product contains 25 wall plates.
Order quantity 1: One complete 25-piece package.
Keystone jacks, couplers and blank inserts are selected separately according to the required network or AV connections.
Frequently Asked Questions
Is the listed price for one wall plate?
No. The product is sold as one complete package containing 25 wall plates.
How many total connections can the package support?
Each plate has four openings. The 25-piece package provides capacity for up to 100 keystone connection positions.
Are keystone modules included?
The package includes the wall plates and matching mounting screws. Keystone modules are selected separately according to the connections required.
Can different connector types be installed on one plate?
Yes. Compatible network, HDMI, coaxial, USB and audio modules can be combined on one plate. Check the width of oversized modules before filling all four positions.
Can unused openings be covered?
Yes. Install compatible blank keystone inserts to close unused positions and maintain a neat appearance.
Will the plate fit a standard wall opening?
It is designed for a compatible North American single-gang box, surface box or low-voltage mounting bracket.
Need Help Selecting Keystone Modules?
Tell us which network, HDMI, coaxial, USB, telephone or audio connections are required. AVTECK can help identify suitable wall plates and compatible modules for residential and commercial projects across Canada.
