Description
A complete commercial wall speaker system for hotels, restaurants, lounges, fitness areas, retail stores and other open-ceiling business spaces.

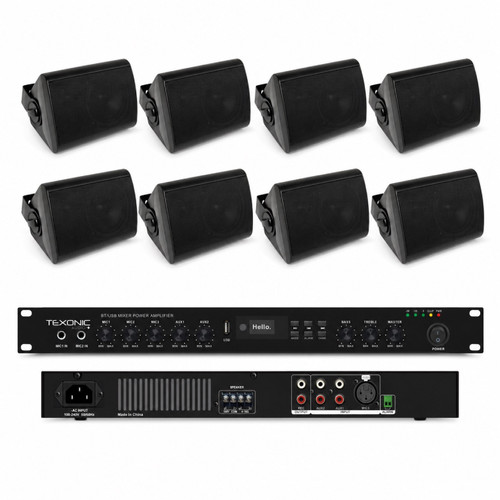

This package combines a TEXONIC EX240D 240W Bluetooth mixer amplifier with eight CS75 two-way wall speakers for clear background music, paging and evenly distributed sound.
Suitable for Open-Ceiling Spaces
Wall-mounted speakers are a practical choice for exposed ceilings, concrete ceilings, high ceilings and finished spaces where ceiling speaker installation is not suitable.
- Hotel lounges and reception areas
- Restaurants, cafés and bars
- Fitness centres and studios
- Retail stores and showrooms
- Breweries and open-ceiling dining areas
- Offices, workshops and commercial spaces
What’s Included
1 × TEXONIC EX240D 240W Mixer Amplifier
A 240W Class-D commercial amplifier with Bluetooth, USB playback, microphone inputs, auxiliary audio inputs, paging priority, chime and alarm tones, and 70V/100V speaker outputs.
8 × TEXONIC CS75 Wall Speakers
Eight 5-inch two-way commercial speakers with separate tweeters, adjustable mounting brackets and selectable 70V power taps. The speakers can be installed horizontally or vertically.
Music and Paging Features
- Bluetooth streaming from compatible devices
- USB music playback
- Two auxiliary inputs for external audio sources
- Three microphone inputs for paging
- Built-in announcement chime and alarm tones
- Voice priority lowers music during announcements
- Bass, treble and master volume controls
- Line output for compatible system expansion
Flexible Speaker Tap Settings
Each CS75 speaker can be set individually according to the sound level required in its area. This allows quieter settings in hallways or reception areas and higher output in dining rooms, lounges or fitness spaces.
Available 70V speaker taps: 1.9W, 3.75W, 7.5W, 15W and 30W.
Speakers do not all need to use the same tap. Select the appropriate setting for each area, then add all speaker tap wattages together to calculate the total connected load.
Amplifier Load and 20% Headroom
The combined wattage of all eight speakers must remain below the amplifier’s rated output while maintaining at least 20% amplifier headroom.
EX240D rated output: 240W
20% reserved headroom: 48W
Maximum recommended speaker load: 192W
A balanced standard configuration is eight speakers at 15W each, creating a total load of 120W.
Higher taps may be used in selected areas when more volume is required. For example, four speakers at 30W and four speakers at 15W create a total load of 180W, which remains within the recommended 192W limit.
70V Speaker Connection
Connect all eight speakers in parallel using the EX240D amplifier’s 70V and COM terminals. Maintain consistent speaker-wire polarity throughout the complete installation.
Important: Use only one speaker output type. Do not connect the 70V speaker system while also using the amplifier’s 100V or low-impedance output terminals. Mixing output types may damage the amplifier or connected speakers.
Flexible Wall-Mount Coverage
The adjustable brackets allow each speaker to be aimed toward guest, customer, seating or activity areas. Final speaker placement and tap settings should be based on the room layout, ceiling height, ambient noise and required listening volume.
Why Buy from AVTECK?
- Canadian commercial audio specialist
- Ships from our Barrie, Ontario warehouse
- Canadian technical and product support
- Free basic wiring diagram on request
- Support before and after your purchase
Warranty
TEXONIC EX240D Amplifier: 2-Year Manufacturer’s Warranty
TEXONIC CS75 Wall Speakers: 3-Year Warranty
Need Help?
Send us your floor plan, ceiling height, room uses and preferred sound levels. We can help recommend speaker locations, individual tap settings and the correct total system load.
