Description
A complete six-zone outdoor paging system for warehouses, factories, schools, loading areas, parking lots and other commercial or industrial facilities.

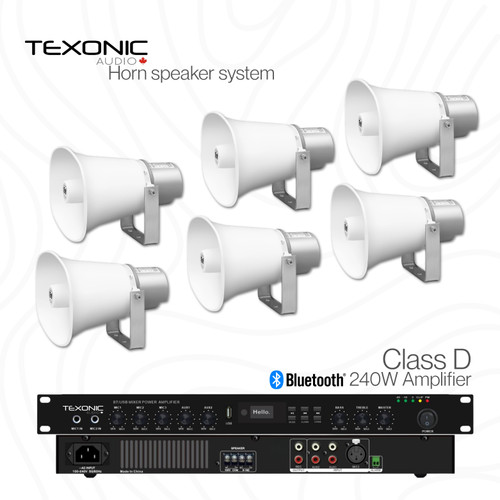

This package combines a PR-240BT 240W commercial mixer amplifier with six TOA SC-630TU weather-resistant horn speakers for clear voice paging, staff announcements and public-address communication.
Designed for Outdoor and Noisy Areas
The TOA SC-630TU horn speakers are designed to project clear voice announcements across outdoor, industrial and high-noise environments.
- Warehouses and distribution centres
- Factories and production facilities
- Loading docks and shipping yards
- Schools and outdoor campus areas
- Parking lots and vehicle areas
- Commercial and industrial buildings
What’s Included
1 × PR-240BT 240W Mixer Amplifier
A 240W Class-D commercial mixer amplifier with 70V, 100V and 4-ohm speaker outputs, six paging zones, Bluetooth, USB/SD playback, FM radio, microphone inputs and telephone paging support.
6 × TOA SC-630TU Paging Horn Speakers
Six weather-resistant horn speakers designed for voice paging and tone signalling. Each speaker includes a built-in 25V/70V transformer, selectable power taps and a stainless-steel mounting bracket.
Clear Voice Paging
The SC-630TU double re-entrant horn and compression driver provide strong sound projection and clear speech reproduction for commercial announcements.
- High speech intelligibility
- 113 dB sensitivity at 1W and 1 metre
- 250 Hz to 10 kHz frequency response
- IP65 dust and moisture protection
- UL 1480 UUMW and ULC-S541 certified
- Suitable for outdoor commercial use
Six-Zone Paging Control
The PR-240BT provides six high-impedance speaker-zone outputs with an individual level control for each zone. One horn speaker (15W/100V- do not connect 30W) can be connected to each zone for easier area-by-area volume adjustment.
All zones normally share the same music or paging source. Add the optional Quest RM6 paging microphone when selected-zone paging is required.
Amplifier Paging Features
- Four balanced microphone or line inputs
- Selectable 48V phantom power
- Telephone paging input
- Priority ducking for announcements
- Six zones with individual level control
- Optional RM6 six-zone paging microphone
- Bluetooth audio streaming
- USB and SD card MP3 playback
- Built-in FM radio and recording
- Two auxiliary audio inputs
- Music-on-hold and line output
- Bass, treble and master volume controls
Paging System Design
The TOA SC-630TU horn speakers and Quest PR-240BT amplifier are suitable for commercial paging systems.
This type of system is ideal when one amplifier is required to power multiple paging speakers throughout a large commercial or industrial facility.
For reliable operation, calculate the combined wattage of all connected speakers and ensure the total speaker load remains safely below the amplifier’s rated output. Adequate amplifier headroom should always be maintained.
Package speaker load: Six horn speakers at 30W create a total connected load of 180W.
The PR-240BT provides 240W of rated output, leaving 60W of available amplifier capacity for dependable paging operation.
Important Connection Notice
The amplifier provides 70V, 100V and 4-ohm speaker output options. Use only one output type for the speaker system.
For this package: Connect the horn speakers to the amplifier’s 70V and COM terminals.
Connect the speakers in parallel, or connect one 15/30W horn to each of the six 70V main outputs. Maintain consistent wire polarity.
Do not use the 100V or 4-ohm outputs at the same time as the 70V speaker system. Mixing output types may damage the amplifier or connected speakers.
Outdoor Installation
Mount each horn securely and direct it toward the required listening area. Avoid aiming the speakers toward nearby homes, public roads or other areas where excessive sound may cause disturbance.
Speaker placement, cable type and mounting height should be selected according to the property size, ambient-noise level and required paging coverage.
Why Buy from AVTECK?
- Canadian commercial paging specialist
- Ships from our Barrie, Ontario warehouse
- Canadian technical and product support
- Free basic system diagram on request
- Support before and after your purchase
Warranty
Quest PR-240BT Amplifier: Manufacturer’s limited warranty applies. Contact AVTECK for current warranty terms and coverage.
TOA SC-630TU Horn Speakers: 5-Year Limited Warranty, subject to TOA Canada warranty terms.
Need Help?
Send us the property dimensions, mounting locations, ambient-noise level and paging requirements. We can help review the horn placement, speaker load, zone layout and recommended wiring.
