MBX-AMP Wi-Fi Streaming Zone Amplifier: Seamless Audio Anywhere

The MBX-AMP Wi-Fi Streaming Zone Amplifier from Russound is your ultimate solution for high-quality audio streaming throughout your home. Designed for simplicity, this device ensures easy installation and setup, allowing you to enjoy your favorite tunes from both internet sources and local UPnP™ compliant audio. Perfectly integrate your TV audio without the need for extra hardware, using the included Infrared Sensor to adapt your existing remote control for volume and mute functions.

Expand your system effortlessly with the capability to connect up to 32 rooms, creating a seamless whole-home audio experience. The built-in USB port further enhances its versatility, enabling external drives as additional music sources. Whether for a single room or an expansive property, the MBX-AMP brings sophisticated technology and superior sound right to your fingertips.

Specifications:
Connectivity: Wi-Fi enabled, supports UPnP™ compliant audio streaming
Integration: Advanced TV audio sharing with simple IR remote learning
Expansion: Capable of linking up to 32 streaming rooms with other MBX-Series products
Additional Sources: USB port for external flash drives or USB hard drives
Streaming Services: Access popular internet music streaming services
Audio Quality: Delivers high-fidelity sound throughout any space

SPECIFICATION

• Frequency Response: 20Hz to 20KHz
• Speaker Output 50 Watts Per Channel @ 8ohms, 70 watts @ 4 ohms

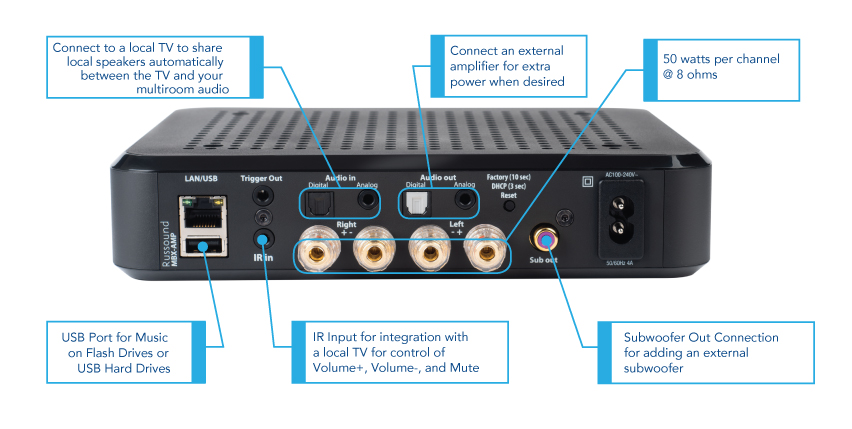

• Audio Outputs: Analog Stereo RCA, Digital Optical, RCA Subwoofer Out (Analog Output configurable via software as fixed or variable)
• Line Audio Output 2V rms
• Audio Inputs 3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback
• Communication Ports Ethernet RJ45 10/100 BaseT
• Wi-Fi 802.11ac, dual band
• Bluetooth Audio Support Yes
• Subwoofer Out Low Frequency Filter: 80Hz
• Trigger Output 12vDC @100mA
• Music File Formats MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC+ (supports up to 24-bit/192kHz)
• Power Requirements 100-240V~50/60Hz, 4A
• Product Dimensions 8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H)
• Product Weight: 1.5 lb (0.68 kg)

FEATURES

• Connect your TV's digital audio output to improve your TV's sound quality and to share your speakers with your premium audio system.
• External IR Sensor included to use the MBX-AMP with your current remote control for Volume/Mute commands
• Built-in AirPlay 2 streaming with full metadata to iOS/Android apps or XTS5.5 touchscreens
• Built-in Chromecast for Audio support with full metadata to iOS/Android apps or XTS5.5 touchscreens
• Bluetooth Audio
• Hi-Res audio streaming support up to 24-bit/192 kHz
• USB for Flash or external USB Hard drive-based music collections
• Digital (PCM) and Analog Stereo Inputs
• Digital or analog output
• Controllable with the Russound App and fully compatible with the Russound XTS5.5 in-wall touchscreen
• Bass, Treble, and Loudness settings available through the Russound App
• Supports local favorites
• Onboard browser-based configuration, accessible from a smartphone or tablet
• Mix and match with other MBX-Series® components for versatile system designs

INCLUDED:

• 1 x Russound MBX-AMP
• Instruction Manual
