Description
DXT Series 60W Commercial Amplifier with Bluetooth, MP3 & FM Tuner
The DXT Series 60W mini commercial amplifier is the ideal solution for background music and announcements in settings like restaurants, supermarkets, offices, and retail spaces. Featuring built-in MP3 playback, FM tuner, and Bluetooth connectivity, this all-in-one amplifier supports up to two microphones, external audio sources, and delivers clear, reliable sound in any commercial environment.
The DXT Series combines pre-amplification and power amplification, with a compact desktop design that supports 70V/100V speaker systems, as well as 4 Ohm and 8 Ohm outputs. The front panel offers easy control with USB/SD inputs for MP3 playback, an LED display for source selection, and individual volume controls for each input. With Background Music (BGM), Music On Hold (MOH) for emergency announcements, and priority microphone settings, this amplifier offers both flexibility and performance.
Features:
- Compact design with 70V/100V transformer technology

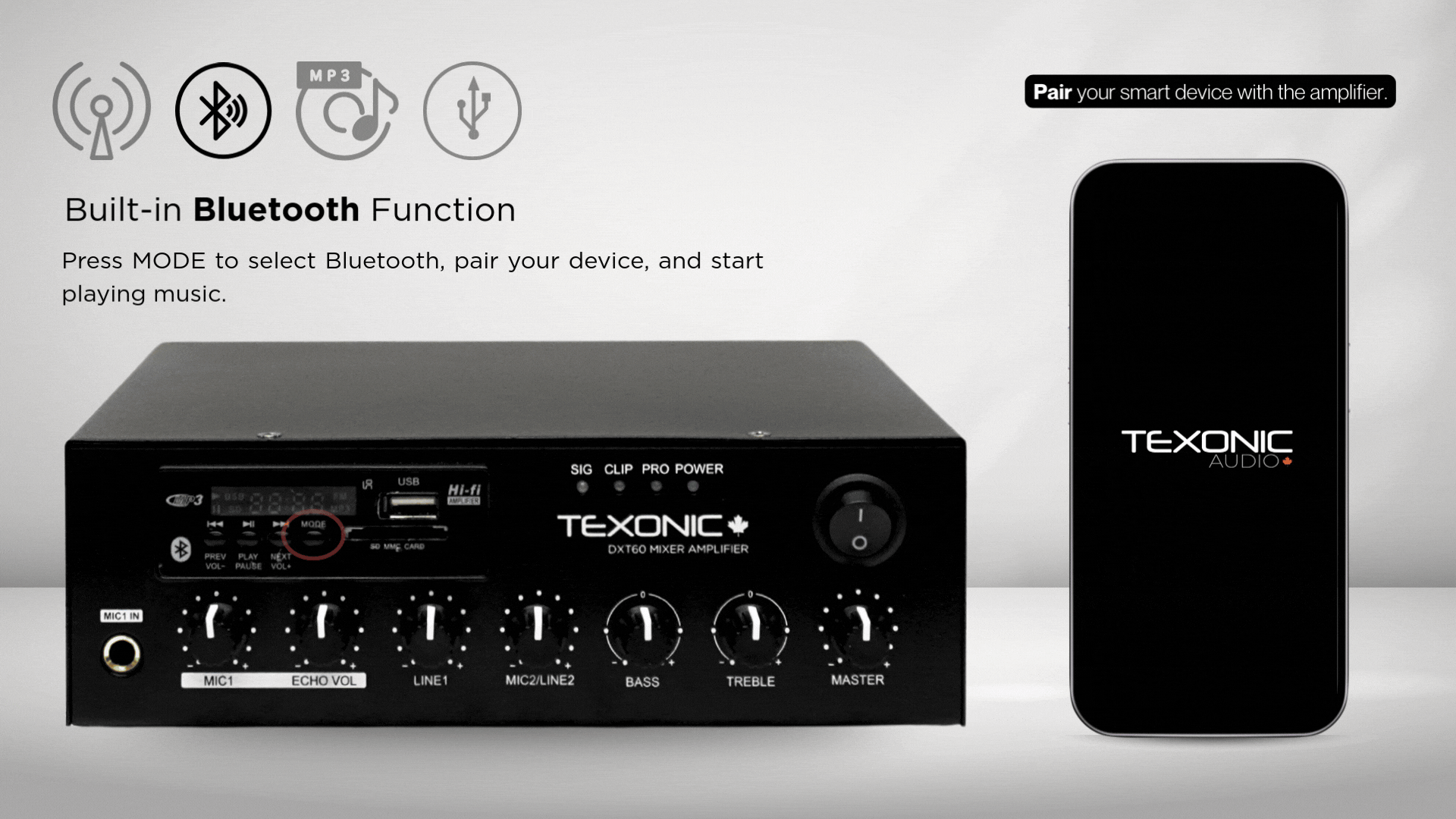

- MP3 playback, FM radio, Bluetooth connectivity
- 60W power output
- Supports 70/100V, 4 Ohm, 8 Ohm speaker outputs
- Front panel USB/SD inputs with IR remote control
- LED indicators for power, clipping, protection, and signal presence
- Removable screw-down Phoenix connectors
- Individual volume, bass, and treble controls
- Line out for external subwoofer or amplifier connection
- Protection against short-circuit, overload, and overheating
SPECEFICATIONS
- Rated Power Output 60W
- Speaker Outputs 100V or 70V & 4-8 Ohm
- Connector
- Mic1 of 6.3mm Jack on front panel
- Mic/line2 switchable input balanced XLR with +48V phantom power
- Line1 input of RCA input
- RCA line output
- With mute and EMC input from fire alarm system
- Input MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
- Line Out 0.775(0dBV)
- Frequency Response 60Hz-15kHz(±3dB)
- S/N Ratio Line ≥ 85dB, Mic≥ 72dB
- THD Less than 0.5%
- Protection Short-circuit, clip, overload and high temp protection
- Power Consumption 80W
- Power Supply 110/240V AC & 24VDC; 50-60Hz
- Dimension 22 x 20 x 7.2 cm (8.66 x 7.87 x 2.83 in)
- Weight 2.6kgs (5.7lbs)
GENERAL
With desktop design, elegant appearance, and lightweight.
INCLUDED
- Instruction Manual
- 1 x DXT 60W amplifier
- Indoor FM Antenna
- Remote Control
- AC Power Cord
