Professional 5-Channel Mixer Amplifier – Master Audio in 4 Zones

Product Description

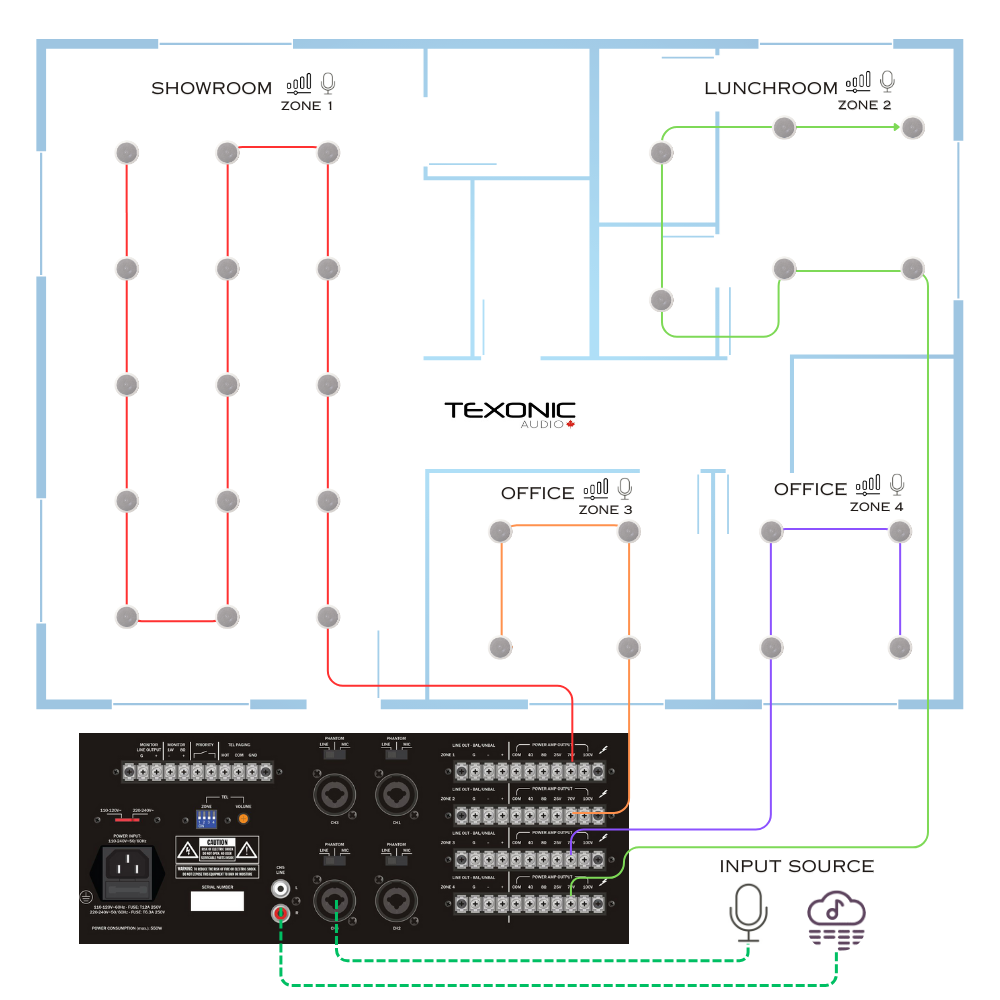

Achieve precise sound management in commercial environments with our 160W 5-Channel Mixer Amplifier. Designed for multi-zone setups, this amplifier delivers tailored audio control across four separate areas, each with independent volume and EQ adjustments. Compatible with 8 Ohm and 100V line speakers, it features versatile input options, including Mic/Line, RCA Phono, and headphone monitoring. Ideal for businesses requiring distinct audio settings in multiple rooms, this unit ensures optimal sound performance, flexibility, and seamless operation.

Specifications

• Power Output: 160W
• Channels: 5
• Zone Control: 4 individually controllable zone outputs
• Speaker Compatibility: 8 Ohm & 100V line speakers
• Inputs:
  • 3 x Mic/Line (Combo Jacks)
  • 2 x Stereo Line (RCA)
  • Independent paging input for all zones
• Features:
  • Individual gain, tone control, mute, and zone routing for each channel
  • Switchable +46V phantom power for microphone inputs
  • Priority function for Channels 1-3
  • Integrated limiter for speaker protection
  • Fan-cooled system for extended reliability
  • Headphone output & monitor speaker connection
  • Zone & monitor level control with VU meters
  • Additional zone and monitor line outputs for expansion

This versatile and robust amplifier is perfect for businesses, offices, restaurants, or retail spaces that need flexible and high-quality multi-zone audio control.
