Speaker Volume Controller RMS 100W (S-8246)

(No reviews yet) Write a Review
Was: $24.99
Now: $19.99
SKU:
S-8246
Shipping:
Calculated at Checkout

Product Overview

Speaker Volume Controller RMS 100W (Slide Type) - White

When setting up the speaker volume controls, it is important to match the impedance of your speaker system with the load rating of your amplifier. This is done by setting the jumpers on the volume control to compensate for the number of speakers you have in a parallel configuration and the impedance level of the speakers.

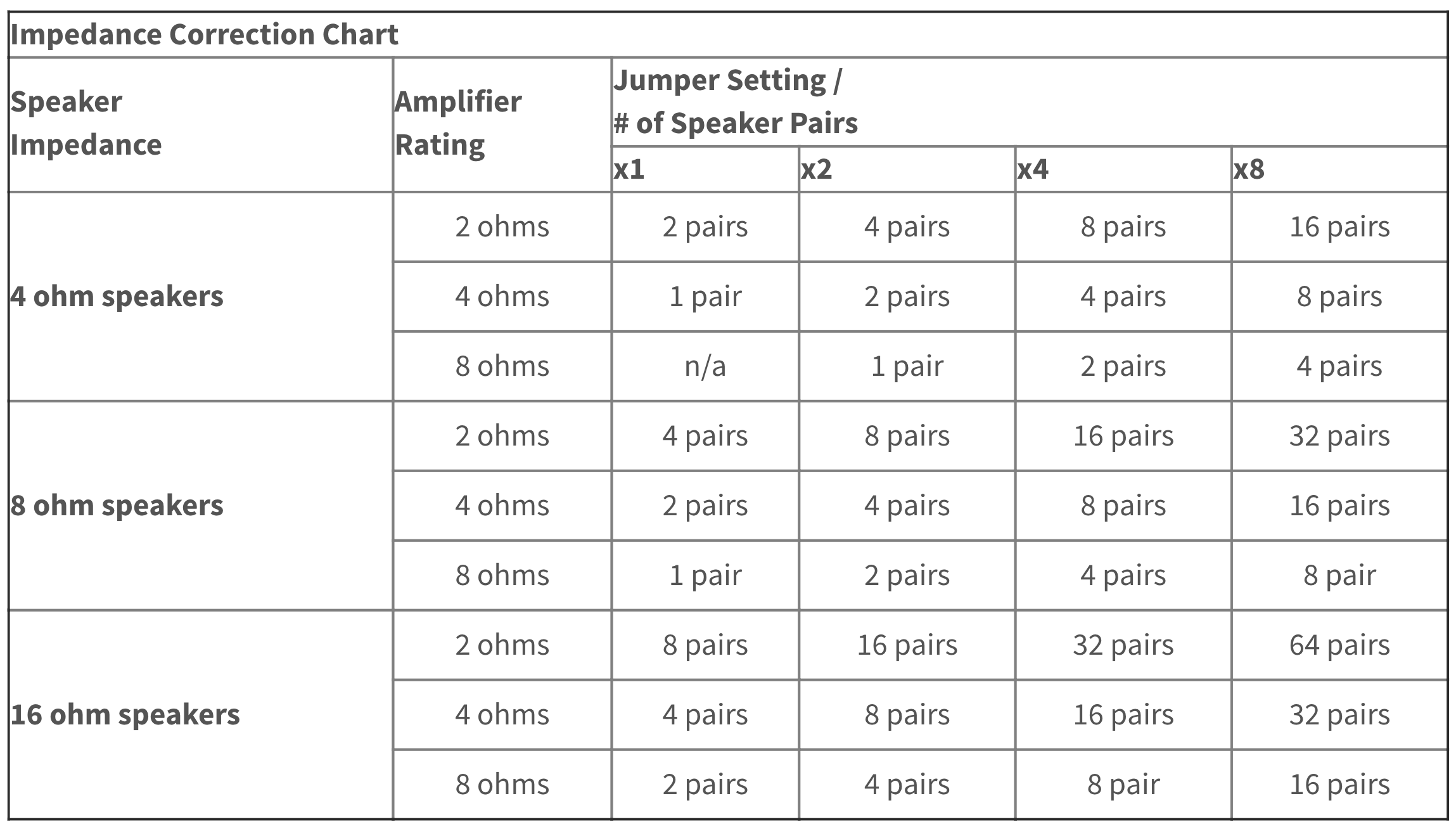

If using a single pair of speakers rated at the same load level as your amplifier, you don't need to make any changes - just leave the jumper in the default x1 position. However, if your speakers are of a different impedance level and/or you have more than one set of speakers in parallel, please refer to the following chart as a guide for setting the jumpers on the speaker volume control.

Note that for any speakers wired in series, the overall impedance level is the sum of each speaker. So two 4 ohm speakers wired in series is the same impedance as a single 8 ohm speaker.


  • Input: 2 channels, 100 watts per channel
  • Output: 2 channels, 4 to 16 ohms impedance matching
  • Frequency Response: 35 Hz to 20 kHz (+0/-2 db) at rated power
  • Wire gauge: 14 to 16 AWG
  • Material: Plastic ABS
  • Depth: 2 3/4"
